Introduction to AMAGE programming interfaces

Introduction

The document describes AMAGE programming interfaces that enable integration with the AMAGE system. Interfaces allow access to data and to perform operations on data in the AMAGE system. Communication is carried out via the HTTPS protocol and REST API methods. To use AMAGE programming interfaces, you must have appropriate access rights and access keys.

Generation of access keys - summary

The application uses access keys (APIKeys) to create shortcuts authorizing access to the WEB REST API interface. We define key permissions in the configuration interface in the API Keys section.

image 2024 05 22 19 56 17 047
Figure 1. View of the API key list with basic information about the key
image 2024 05 22 19 56 50 499

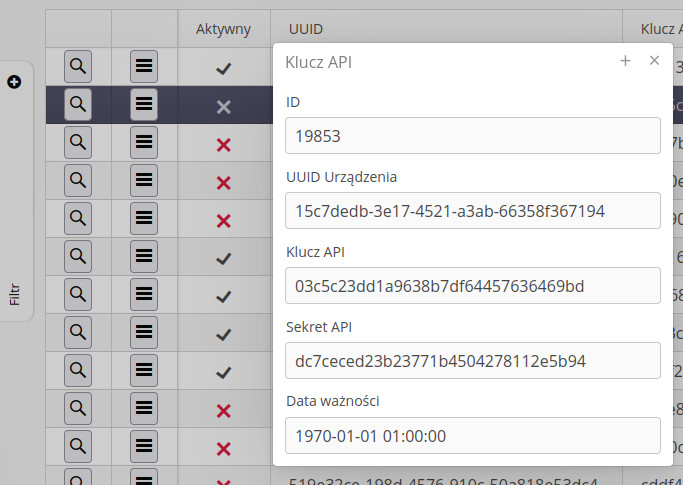

Figure 2. API key access details

For more, refer to the user manual:

API keys, authorization and data headers

To enable access to the API and be able to communicate through this interface, we need to create API keys for authorizing/signing queries so that the AMAGE system is able to correctly recognize the query and share the data. Generate API keys in the configuration section and don’t forget to activate it. Save three parameters - device-uuid, key and secret, which will be used to generate the query signature.

More:

Object identification/UUID

Objects in the system identify themselves by their unique UUID. In order to download an object from the system, you need to know its UUID. UUID can be found in the user interface, in export files, in the database, in system logs. Typically, in the user interface, an additional button with an (I) icon appears for each object in the data viewer or its editor. After selecting it, information about the object’s identification data, including UUID, is displayed. Use this UUID for interactions where a UUID is required.

image 2024 05 26 09 21 39 780

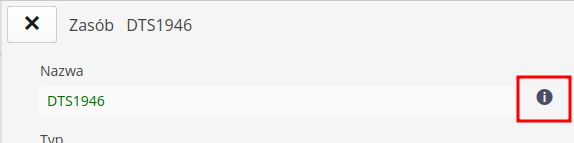

Figure 3. Information button
image 2024 05 26 09 22 10 636
Figure 4. Identification data including UUID

API signature

For each communication with the AMAGE system through the REST interface, three headers (headers) with data are required:

  • amage-device-uuid - identifier of the device for which the signature is generated

  • amage-api-key - API key

  • amage-api-sign - query signature

Device UUID and API key are provided directly from the generated API key. The signature is generated based on the query path and the API key secret. The signature is generated using the SHA-256 algorithm and the result is transmitted in binary form. The result is then converted to hexadecimal and passed as an amage-api-sign header.

Programming interfaces

The available information about REST APIs is divided into functional sections. After appropriate authorization, the user can use individual sections.

Select a section/article:

  • AMAGE REST API - downloading attachments:: The document describes the case of adding serial numbers to devices/materials already delivered to the destination. Using the delivery editor in the Desktop view, we can add inventoried serial numbers.

  • AMAGE REST API interface - report generation:: The document describes the generation of reports from the AMAGE system. Reports can be generated in PDF, XLSX, JSON format with full use of report tabs to generate reports according to user requirements.
