Configuration of hardware components

Introduction

This document describes the configuration of selected hardware components for proper cooperation with the AMAGE application.

Label printers

Label printers, due to their use for printing on any type of media with very different dimensions, require appropriate calibration and internal settings in accordance with the additional equipment (e.g. cutters) and own parameters (e.g. heating of printheads), which are completely different than standard office printers.

All thermal transfer (label) printers are sensitive to the surface of the material. Do not touch (fat) labels with your hands before printing. Otherwise, thermal dye transfer will fail and the label will be unevenly marked.

CAB printers - PARTEX, HELLERMAN & TYTON

The installation of CAB printers or CAB printers sold by label manufacturers, i.e. PARTEX and HELLERMAN&TYTON in Windows 7/8.x/10 systems, takes place automatically after connecting the printer to the computer with a USB cable. In order for the drivers to be detected, you must have an internet connection and local computer administrator rights. After installation, the printer appears on the control panel under "Devices and Printers" as shown in Figure 1.

hardware configuration devices printers

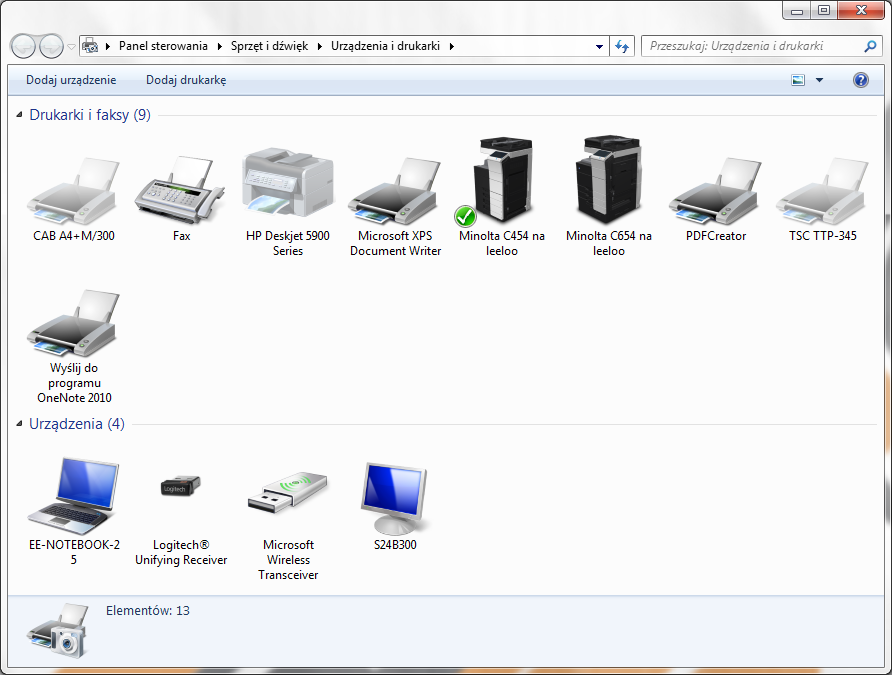

Figure 1. Devices and printers
If you do not have an Internet connection, you can use the installation discs supplied with the printer, which contain drivers for popular operating systems.

In order to prepare the printer for proper operation in the system, you must define the sizes of labels accepted by the printer. In this case, it is possible to print from the AMAGE application directly to the label printer, omitting the paper size and printer selection windows, completely automating the printouts.

Label size definition

In order to define the types of labels used, select the label printer in the "Devices and printers" panel and select "Printer properties" from the context menu (available under the right mouse button). The window shown in Figure 2 will appear.

hardware configuration printer properties

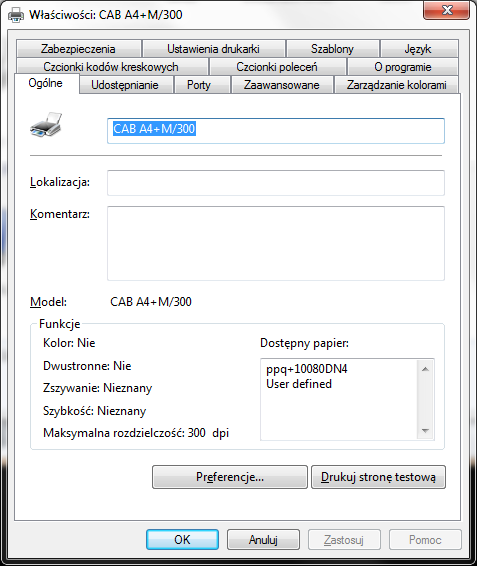

Figure 2. Printer properties

Printer settings allow you to define general printer data available for applications using this print medium. In order to define new label formats, go to the "Templates" tab, as shown in Fig. 3. In this window, it is possible to define/change the available label templates.

hardware configuration printerr template view

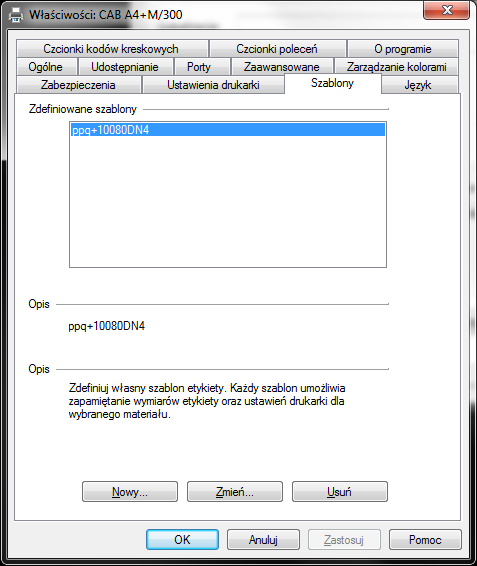

Figure 3. View of printer templates

To define a new label template, select the "New…​" option. After selecting a new template definition window appears - Fig. 4. The window is used to define the template name, label size, print speed and non-printable areas.

For the AMAGE application, the name of the template is not important. During label printing automation, the application searches for a label template with the same size as the selected label in the application itself. After adjusting the dimensions, such a template is selected for printing.
hardware configuration define label template
Figure 4. Defining a label template

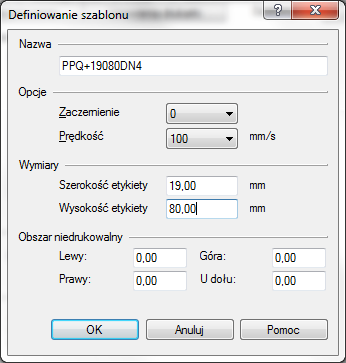

Figure 4 shows an exemplary definition of labels for PARTEX PPQ+19080DN4 labels, i.e. labels with a label width of 19mm and a height of 80mm. Margins should always be set to 0mm.

You must define all the templates for the labels you want to work with. If no appropriate template is defined, the application will select the default label size defined in the global printer options.
If the printer skips a single label from the tape during printing - for labels with a specific length, such as Partex PPQ labels, reduce the label height by approx. This will allow the label to shift less during printing and allow the printer to detect the new label start mark (vertical gap in the continuous label material).

Additional properties

If you have additional printer accessories (cutters, etc.), you can define the behavior of the printer in the advanced settings by selecting the "Advanced" tab, as shown in Figure 5. To go to the default printing settings of CAB printers, select the "Default printing settings" button.

After selecting the button, an additional window appears with all available printer options. Changing these settings changes the default settings when printing from any application on the system.

hardware configuration advanced printer properties
Figure 5. Advanced printer settings

In the case of additional elements, the "Advanced printer settings" tab - fig. 6 - is worth attention, where you can define the specialized behavior of the printer. Such options are, for example:

  • Label sensor type setting - When using a cutter, select "none", i.e. continuous label material.

  • Cutting - where you can set the way of cutting after each label or after a printout group (set of labels) and other specialized steps to adapt the cutting to the available material.

hardware configuration default printer conf

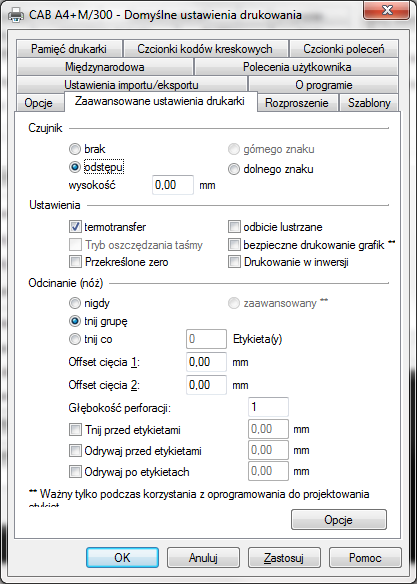

Figure 6. Default print settings

In addition, after selecting the "Options" button, advanced printer settings appear as shown in Figure 7.

Noteworthy options are:

  • Label withdrawal mode - after printing, the label is sent to be torn off, and then when printing is resumed, the label returns (retracts) to a position that allows it to be correctly printed from the beginning of the place of printing

  • Label out of position – allows you to eject the label strip after printing in accordance with the definition of additional settings. label after printing will be pulled out so that it can be easily torn off.

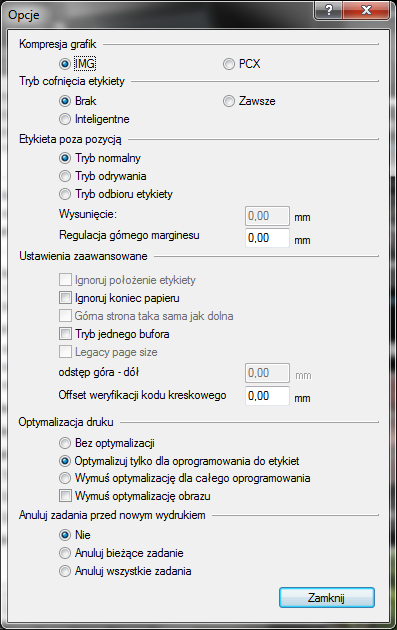

hardware configuration advanced printing properties
Figure 7. Advanced print options

Zebra printers e.g. GK420t

Zebra printers are installed automatically by the Windows 7+ operating system. Otherwise, or if there is no network, download the appropriate drivers from https://www.zebra.com/gb/en/support-downloads.html beforehand. After the printer is installed, it appears in the Printers and Other Devices panel (Figure 1). In the properties of the printout (printing preferences), set the basic type of labels on the printout. In this window you can define text density, non-printable areas and print speed.

hardware configuration zebra printer properties

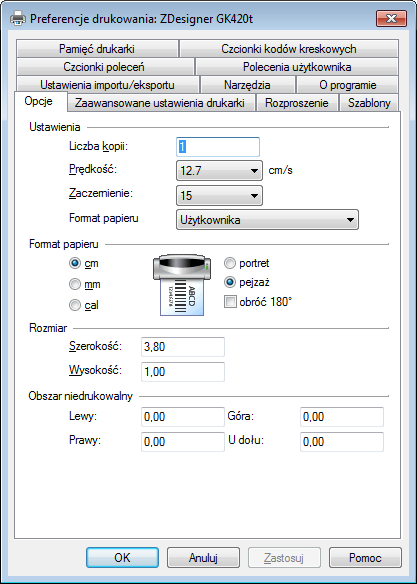

Figure 8. Print properties for a Zebra printer

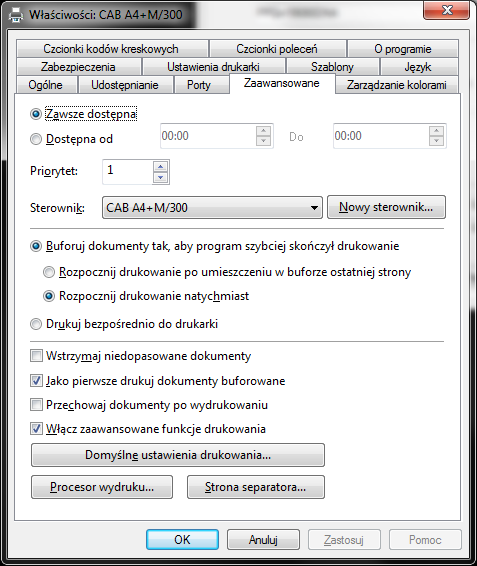

Advanced printer settings allow you to set the way of printing, operating mode (use of cutters, etc.). All information can be found in the "advanced printer settings" - Figure 9.

hardware configuration zebra advanced printer properties

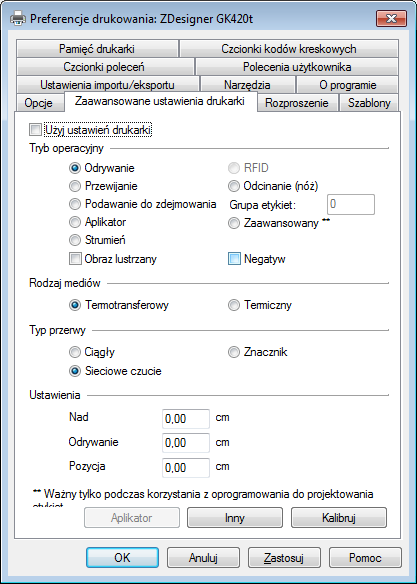

Figure 9. Zebra Printer Advanced Settings

Label size definition

To enable correct printing using the automatic method of printing, you must define templates corresponding to your label sizes in the configuration of the Zebra printer. To do this, in the printing preferences, go to the "Templates" tab - Figure 11 and select to add/edit a label template.

hardware configuration zebra define label template

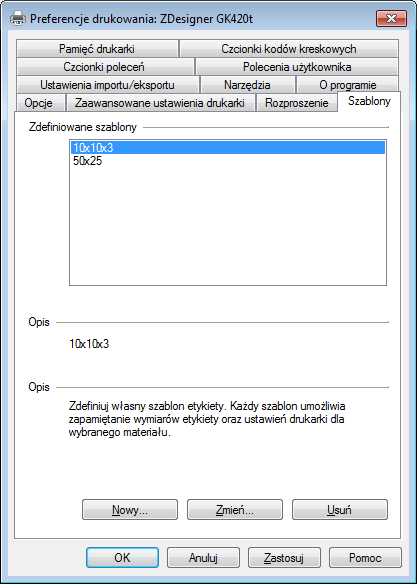

Figure 10. Definition of a label template for a Zebra printer

To support all the label sizes you use, you must define the same number of different label formats.

For the AMAGE application, the name of the template is not important. During label printing automation, the application searches for a label template with the same size as the selected label in the application itself. After adjusting the dimensions, such a template is selected for printing.
hardware configuration zebra edit label template

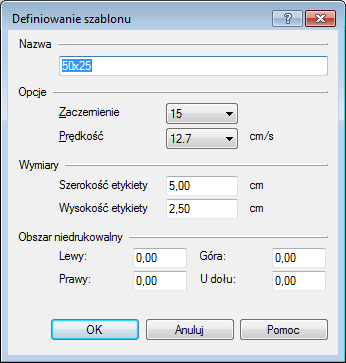

Figure 11. Defining/editing a label template for a Zebra printer

The view of the template definition is shown in Fig. 11. Specify the size of the label according to the available labels. In the case of combined labels, e.g. three 10x10 mm labels placed in the same row on the tape, the total size of the label should be defined, not a single cell.

You must define all the templates for the labels you want to work with. If no appropriate template is defined, the application will select the default label size defined in the global printer options.

TSC printers, e.g. TPP-345

The TSC (Toshiba) printer installs automatically when connected to the computer. In the absence of an Internet connection or problems with automatic installation, download drivers for the appropriate printer from the manufacturer’s website: http://www.tscprinters.com/cms/theme/index-39.html

After installation, the printer appears in the list of printers and other devices (Figure 1). To enable printing on defined labels, go to the printer’s printing preferences by selecting these options from the printer’s context menu (right mouse button).

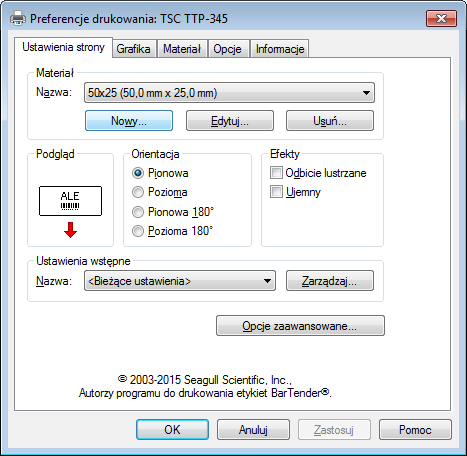

After selecting the option, the printing preferences window will appear as shown in Figure 12.

hardware configuration TSC printing preferences
Figure 12. TSC printer printing preferences

In the default printing preferences, you can specify the printing orientation, effects, and additional printing operations.

Label size definition

In order to define the label sizes used, you need to define them using the Edit/New buttons in the "Material" section. Definition of a new label consists in entering information about the width and height of the label along with information about the available margins.

For the AMAGE application, the name of the template is not important. During label printing automation, the application searches for a label template with the same size as the selected label in the application itself. After adjusting the dimensions, such a template is selected for printing.
hardware configuration TSC label size

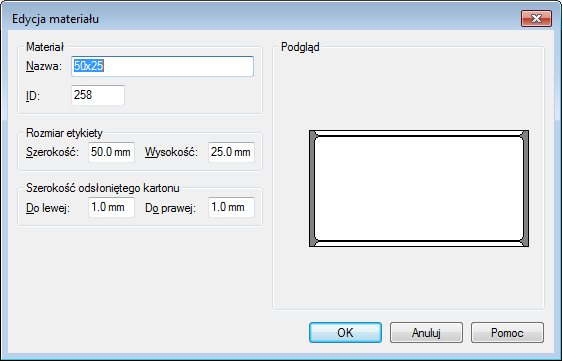

Figure 13. Definition of the label size for the TSC printer
You must define all the templates for the labels you want to work with. If no appropriate template is defined, the application will select the default label size defined in the global printer options.

Label printing - Linux system

Installing printer drivers is outside of these tutorials. Refer to the readme files or documentation on manufacturers' websites. The correctness of label printing on CAB and TSC printers (as above) for the Linux system was checked by connecting the devices both via the USB interface and via the network interface.

The installation was standard and can usually be divided into two stages:

  • Installation of PPD definitions for a given manufacturer’s printers - usually through installation scripts in archives

  • Adding a printer - through the usual interface of a given environment (such as Gnome)

Depending on the printer, the printout needs to be set appropriately in terms of position, settings or rotation. After the first setting, usually further printing works automatically.

An example printout using a CAB printer looks like this:

Open the labels prepared in AMAGE for printing

common amage hardware configuration 5ef92

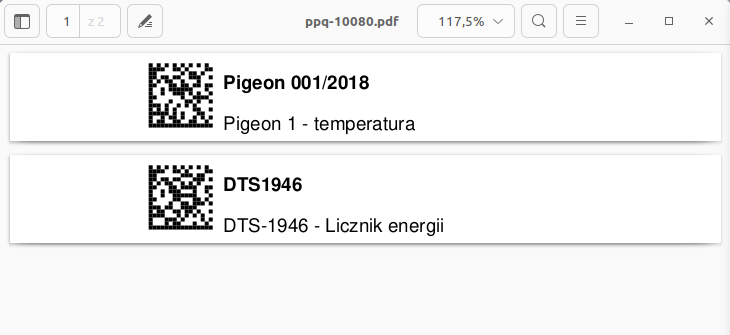

Figure 14. PPQ-10080 printable labels
common amage hardware configuration e36d3

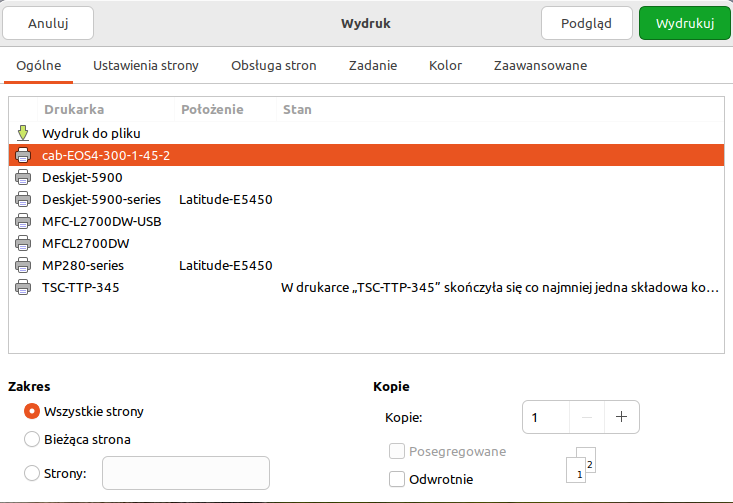

Figure 15. We select the appropriate printer
common amage hardware configuration 5b5ae
Figure 16. We define the appropriate size of the label (such as the current one we need)
common amage hardware configuration 50c03

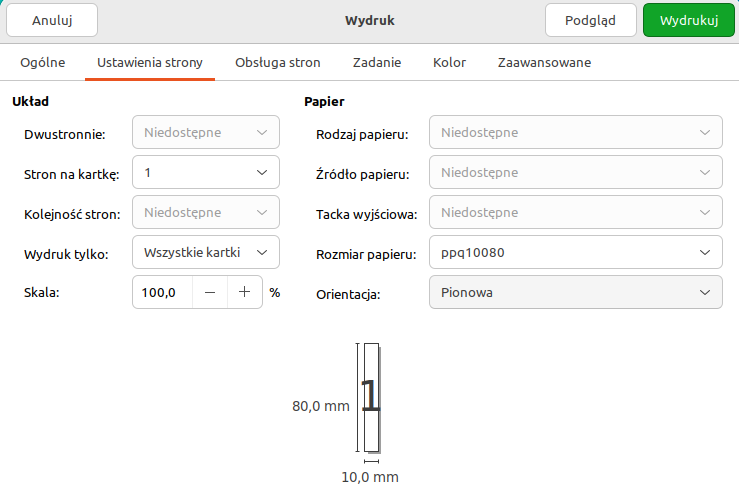

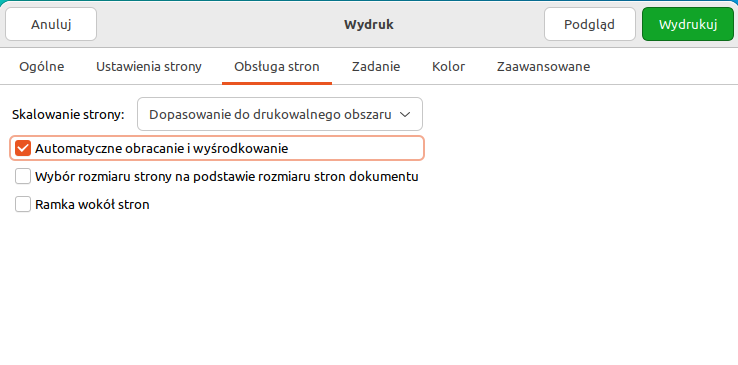

Figure 17. We choose this paper size for printing
common amage hardware configuration 713fe
Figure 18. We set the appropriate page settings (printer/label dependent)
common amage hardware configuration 50c03
Figure 19. For the CAB printer, we use the default additional settings

The printout is printed correctly. Done :)

Mobile terminals

This chapter presents information about mobile terminals, how to configure them, and about hardware and software settings that facilitate their use.

CASIO DT-X8/DT-X200 terminal

The CASIO DT-X8 terminal and its successor DT-X200 are devices with increased environmental resistance and at the same time compact.

hardware configuration casio dtx8 x200

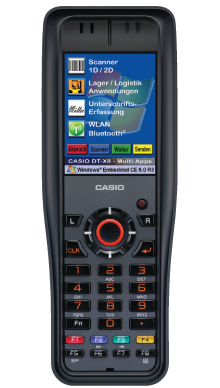

Figure 20. CASIO DT-X8/X-200

The terminal is shown in Fig. 14. The terminal is equipped with a numeric keypad as well as function and special keys:

  • Bar codes are read using the keys marked with an orange border. There are: one centrally on the keyboard and two on the sides of the housing.

  • The options are approved by pressing the ENTER key (arrow)

  • Cancel selection with CLR key

  • Navigation using the cursor keys located around the barcode reading button

  • Color coded function keys F1-F4.

  • Changing the F8 input method (numbers/lowercase/uppercase letters)

  • The screen is touch.

  • Docking stations allow you to charge/communicate your device with the outside world

    • Basic station - for USB connection and power supply

    • USB desk station - a station that facilitates the storage of a terminal with a USB output to a computer

    • ETH desk station - a station that facilitates the storage of a terminal with an ETHERNET output to the network infrastructure

All software options of the device are located in the Control Panel, which can be accessed through the start menu and through the shortcut in the file explorer.

Control Panel

The control panel contains all possible applets that allow you to configure the device. They are accessed by selecting a specific icon from the control panel (Fig. 15).

hardware configuration casio control panel

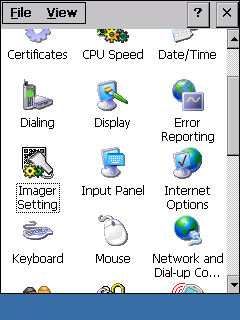

Figure 21. Control panel

Setting the date and time

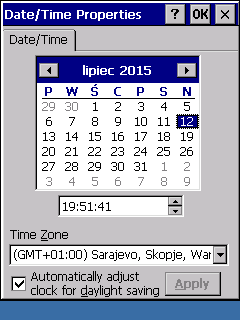

After entering the "Date/==Time" panel, a window is presented as shown in Fig. 16. In the window, you can set the current date and time.

hardware configuration casio setdate
Figure 22. Setting the date and time
A very important setting is the time zone. If the zone is set incorrectly, the time in the terminal will be presented to the user correctly, but the data sent to external systems will be sent with a different time zone than in which the user is currently located. This will move time!

Configuration of the 1D/2D code reader

After entering the "Imager Setting" option (Fig. 17), we are redirected to the application configuring the 1D/2D reader in the terminal. All available functions of the reader appear in the tabs.

hardware configuration casio control panel configurations
Figure 23. Control panel with reader settings
hardware configuration casio read configuration

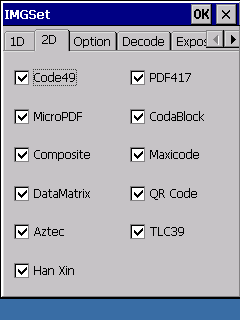

Figure 24. 2D code reading settings

The most important settings are read 1D/2D codes (fig. 18) and signaling the read code to the user (fig. 19).

In the case of the AMAGE application, the basic identification code is the 2D DataMatrix code, and it must be marked as supported by the reader. Otherwise, the reader will not read such a code.

hardware configuration casio indicate signals qr reader

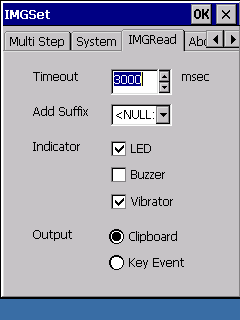

Figure 25. Signaling and auxiliary settings of the barcode reader

USB communication with PC

Access to the definition of wired communication is carried out through the "USB Connection" panel (Fig. 20). USB wired communication to the computer uses two methods to access these resources:

  • ActiveSync/LMWIN – valid for Windows XP family systems

  • Windows Mobile Device Center (WMDC) – valid for Windows 7/8/+ family systems

hardware configuration casio usb connection

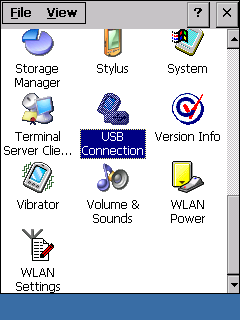

Figure 26. USB connection panel
hardware configuration casio usb connection type selection

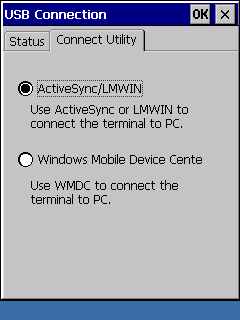

Figure 27. Selection of communication method via USB
If an option incompatible with the system to which the terminal is connected is selected, the connection will be impossible. The terminal and the computer can signal this in different ways, even signaling an attempt to connect and then breaking it. You should always check the current way of communication.

Power Settings

The user can set the power saving scheme (Fig. 22) both in the case of mains power ("AC Line") and battery power ("Battery Power"). After entering the power management panel, the user can see the battery status (charge level) and set power schemes in the "Schemes" tab.

hardware configuration casio emergency supply

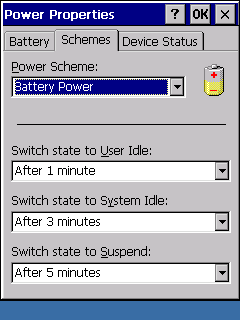

Figure 28. Battery power diagram

The user can set the times:

  • followed by a transition to the user-level standby time ("User Idle")

  • followed by transition to system level standby time ("System Idle")

  • "Suspend"

Sound setup

In the sound configuration, you can set the volume level of the played sounds and which sounds will be signaled to the user (Fig. 23).

hardware configuration casio sound properties

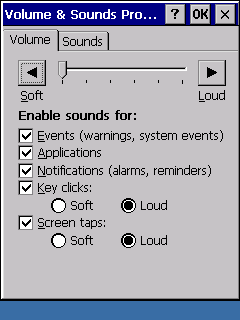

Figure 29. Sound settings

WiFi wireless interface

The configuration of the wireless network is carried out through the panels "WLAN Power" (Fig. 22) and "WLAN Settings" (Fig. 25). The "WLAN Power" option allows you to enable the Wi-Fi network interface. To do this, enable "WLAN Power Enable" in this control panel. If you want to reduce energy consumption and you do not need a network interface, you can disable this interface.

hardware configuration casio wlan card

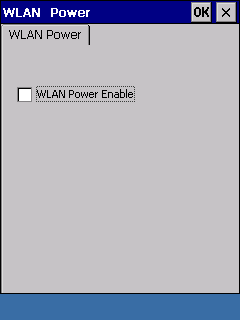

Figure 30. Wi-Fi card settings
hardware configuration casio wlan card conf

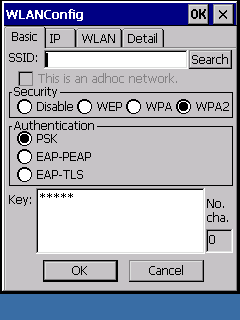

Figure 31. Detailed Wi-Fi settings

Detailed settings for access to the Wi-Fi network are configured using the "WLAN Settings" applet. In it, there is an opportunity to select the network identifier SSID, encryption and passwords. Applying changes requires restarting the device.

Regional Settings

If you want to display personalized regional settings, you can do it in the "Regional and Language Settings" applet (fig. 24). The choice of location determines how e.g. hours, numbers, etc. are presented.

hardware configuration casio regional configuration

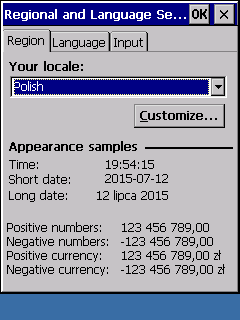

Figure 32. Regional Settings

Label engraving

In order to engrave labels generated by the AMAGE software, the following work must be done both in the AMAGE software and in the software for operating the burner.

  1. Generate labels for group engraving (separate label types). Label sizes are 17mm*50mm, 17mm*65mm, 40mm*100mm, 40mm*120mm, 40mm*150mm or others.

  2. The labels contain a 2D code, text information about the field and a red guide frame for engraving.

  3. After generating the labels, save them in PDF format.

  4. Go to the laser cutter software (Corel Draw) and import (Menu File→Import) the labels. Select to import all pages and replace fonts if any.

  5. Arrange the labels on one side as required and start the engraving procedure.

tablets

Emdoor EM-I16H tablet

10" tablet with Windows 10 (Home/Pro) and 2D code scanners and integrated RFID HF reader.

  • The 2D code scanner is launched with the "F" button available on the top surface of the device

  • The RFID scanner is located on the back cover of the tablet in the place marked in the figure below

hardware configuration tablet em i16h lokalizacja rfid

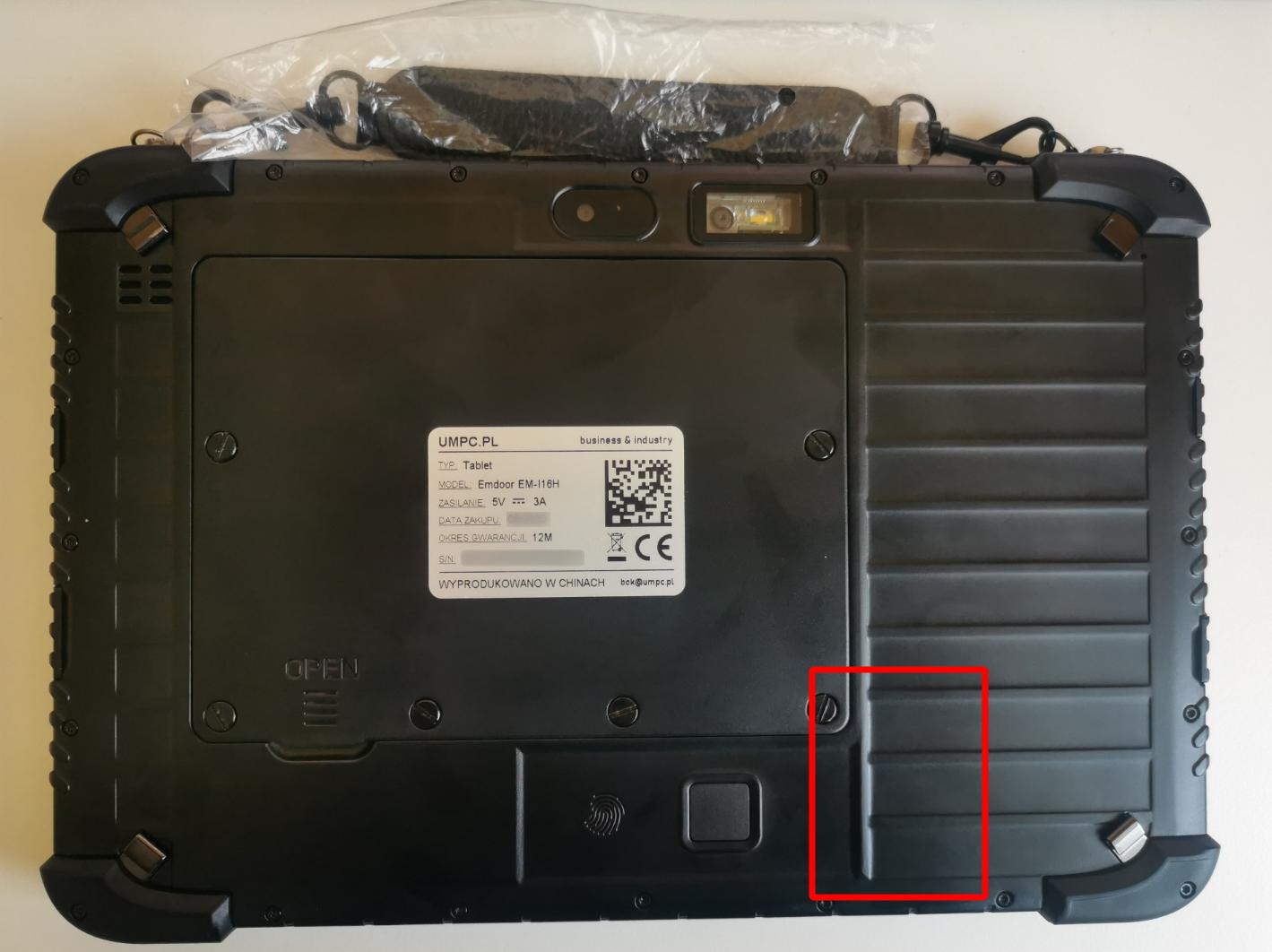

Figure 33. RFID reader location
