Design and use of definable graphical dashboards

Introduction

The document describes the possibilities of configurable graphical dashboards in the application. Using them, the user can create their own views that will contain the elements of their choice. These elements can be of various types, e.g. charts, tables, tiles, etc.

Dashboards introduction

The application includes a number of ready-made dashboards that were designed and implemented by AMAGE engineers. They consistently present information in a graphical manner. They usually affect one functional area. Unfortunately, they do not always meet user requirements 100%. Therefore, the application allows you to create your own dashboards. The user can select the elements he wants to place on his dashboard, as well as their layout. This way he can adjust the view to his needs.

Graphical dashboards allow you to define any appearance and arrangement of data tiles/panels and place them in a specific place in the system menu. We can place elements from different modules in it and be able to decide on their content and filter data.

Prepared dashboards can also be made available in the form of publicly available dashboards and placed on screens 24/7, e.g. on information screens in the workplace.

Purpose of the task

The goal of this tutorial is to build a sample dashboard from the data that is in the system. It should be taken into account that the data itself is exemplary and the purpose is only to present the working method and capabilities of the system. Always refer to the AMAGE system user documentation for full functionality knowledge.

Implementation

We start by preparing the data. In this example, we want to create a new dashboard that will present the current progress of items supervised in the system. The data comes from the Supervision module and the designed dashboard elements will use this data

Creation of two dashboards

First, we create two dashboards. We create them to show how they can be grouped and included in the application’s main menu in different ways. Let’s say we will create the "Assembly progress" and "Delivery progress" dashboard.

We have resources, supervision templates and initialized supervision in the system that correspond to this type of data, so we will not create new data, but will use those that are available.

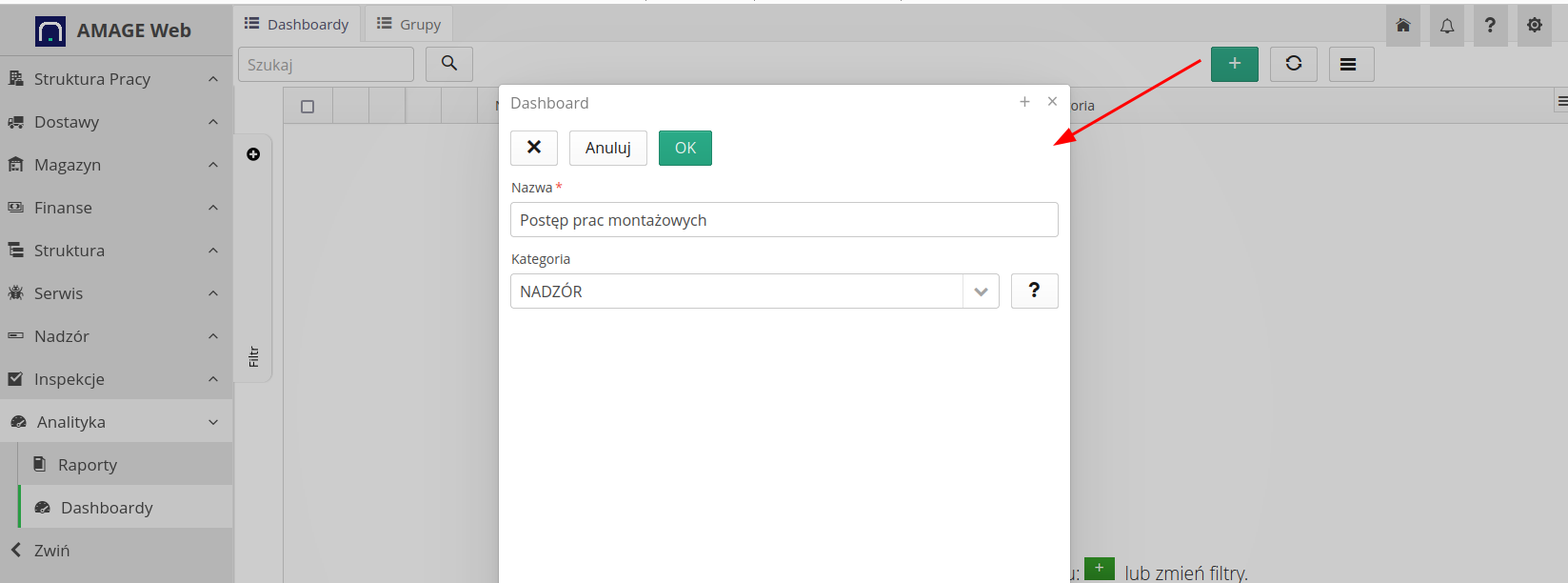

image 2024 05 24 18 26 31 276
Figure 1. Creating the "Assembly progress" dashboard
image 2024 05 24 18 26 57 474

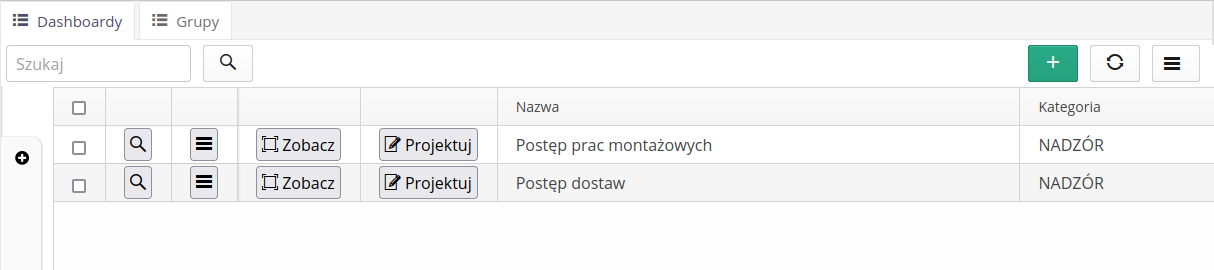

Figure 2. Creation of a new "Delivery progress" dashboard

We create two dashboards, give them names and can categorize them in the "supervision" category. If we have a lot of dashboards, it is worth categorizing them to facilitate later navigation. We save the data.

We can move on. We create dashboard groups.

Creating a group and adding them to the main menu of the application

Dashboards are panels with data. However, we have often noticed that this data is often quite complicated and contains a lot of indicators that are further divided into certain data areas. Therefore, it would be good if the user could create several such panels and display them in one view. This is what dashboard groups are for.

Note that a group consisting of one dashboard is also a group. The system detects this and then displays only this one dashboard without additional tabs.
image 2024 05 24 18 27 41 718

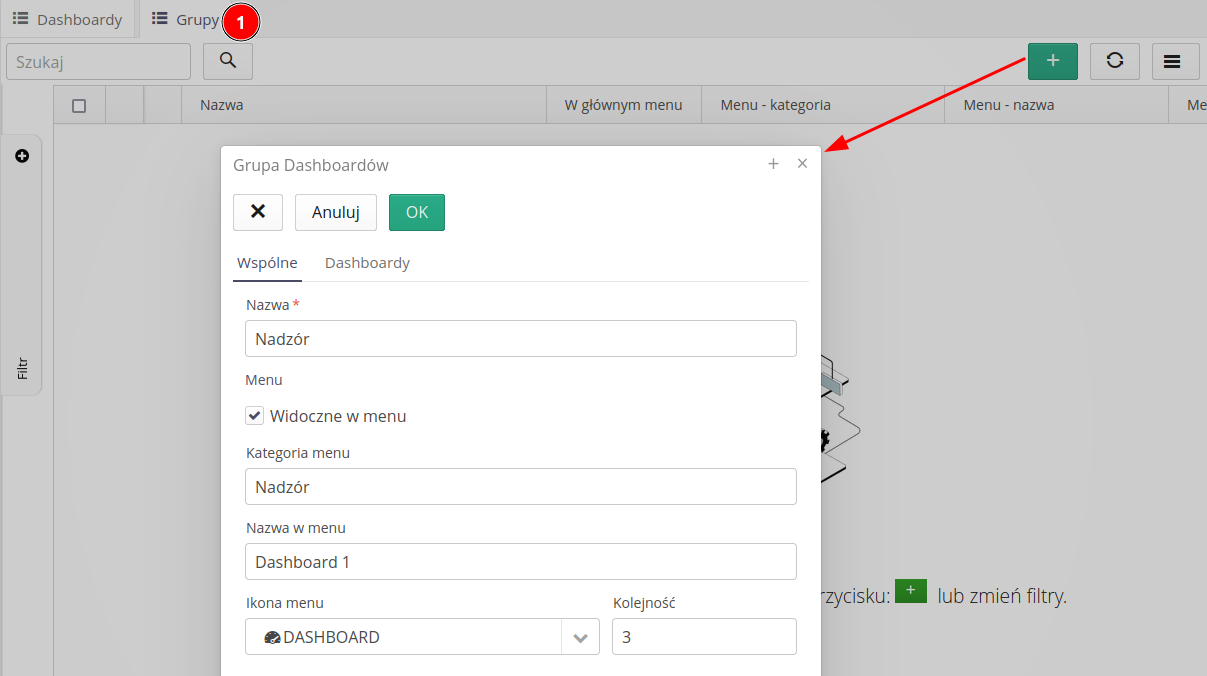

Figure 3. Creating a "Supervision" group

By the way, we take advantage of the fact that a group of dashboards can be connected to the main menu of the application. This way, the user will be able to quickly go to the selected dashboard. Using this method, we can also make dashboards available in individual sections of the system, so that the user can find them in the place where they use, for example, the service module.

image 2024 05 24 18 27 54 924

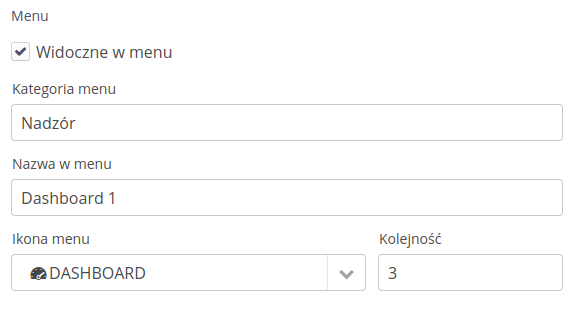

Figure 4. Editing parameters and positioning the dashboard group with the icon in the application’s main menu

We add our designed dashboards to this group.

image 2024 05 24 18 28 30 534

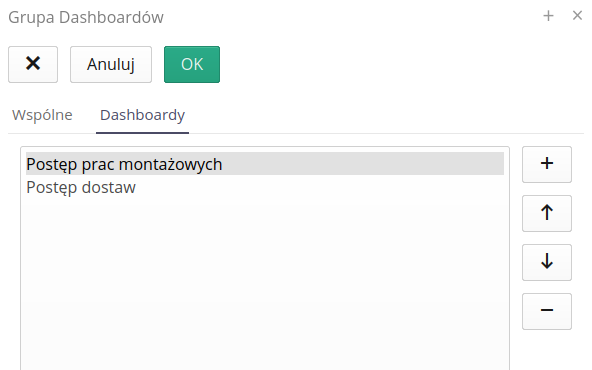

Figure 5. Adding dashboards to the "Supervision" group

We can move on to designing the appearance of the dashboard.

Designing a dashboard

We go to the list of dashboards, select the dashboard we are interested in and select the Design action.

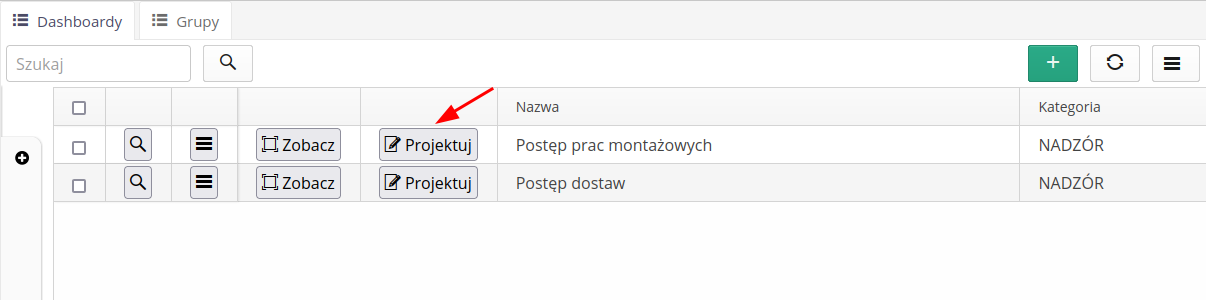

image 2024 05 24 18 29 03 122
Figure 6. Go to designer

We go to the dashboard designer. We start creating the appearance of the dashboard. We can choose from three main components (lines) that create the main structure of the dashboard. These are:

  • Title - an element that displays the title of the dashboard. It is mainly used to separate different areas of data.

  • Line of elements - an element that allows you to place several so-called elements in one line. tiles. Tiles are simple elements with numerical data. We usually store some numerical information here, such as summaries or counts. The tile consists of a title, a numerical value and, optionally, a small chart indicating the so-called data trend. spark. Additionally, there may be buttons available in this area that will redirect you, for example, to the history view of a given parameter or a chart generator.

  • Panel line - an element that allows you to place several data panels in one line. A panel is a more extensive element that can contain various elements such as charts, tables, tiles, maps, etc. Panels can contain data that is more complex and takes up more space than a single line of elements.

In our case, we select several titles, one surveillance summary line, and one line with surveillance data divided into two panels. Importantly, the line configuration allows us to decide whether we have one tile or four in one line. Here we decide on a line with three tiles and two panels in a line.

image 2024 05 24 18 29 51 443

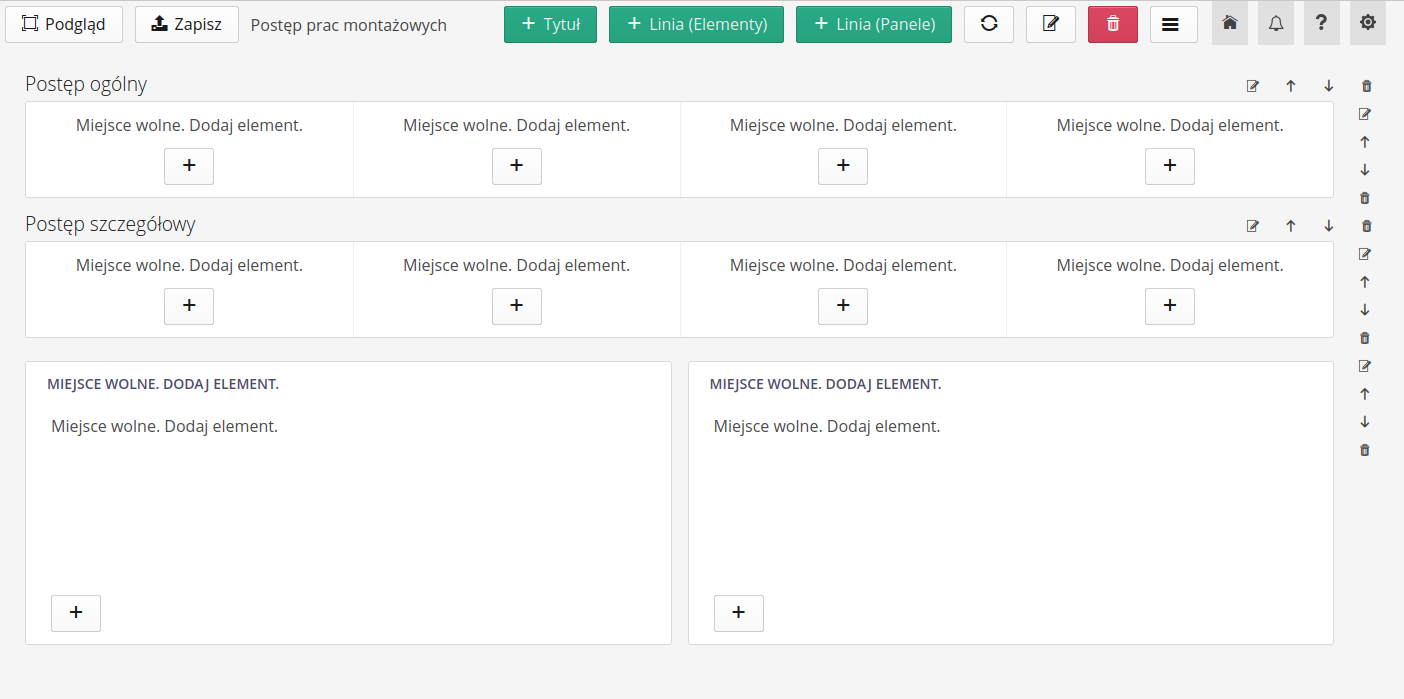

Figure 7. The appearance of the designed skeleton of the supervision dashboard

We proceed to filling in the data. Each line has the so-called places to which we can add content directly from the designer view. Select the '+' button and select the item you want to add. In our case, we add elements related to the supervision module. After adding each element, the configuration of the given element is displayed. Here we can define what we want and how to display it.

image 2024 05 24 18 30 25 049

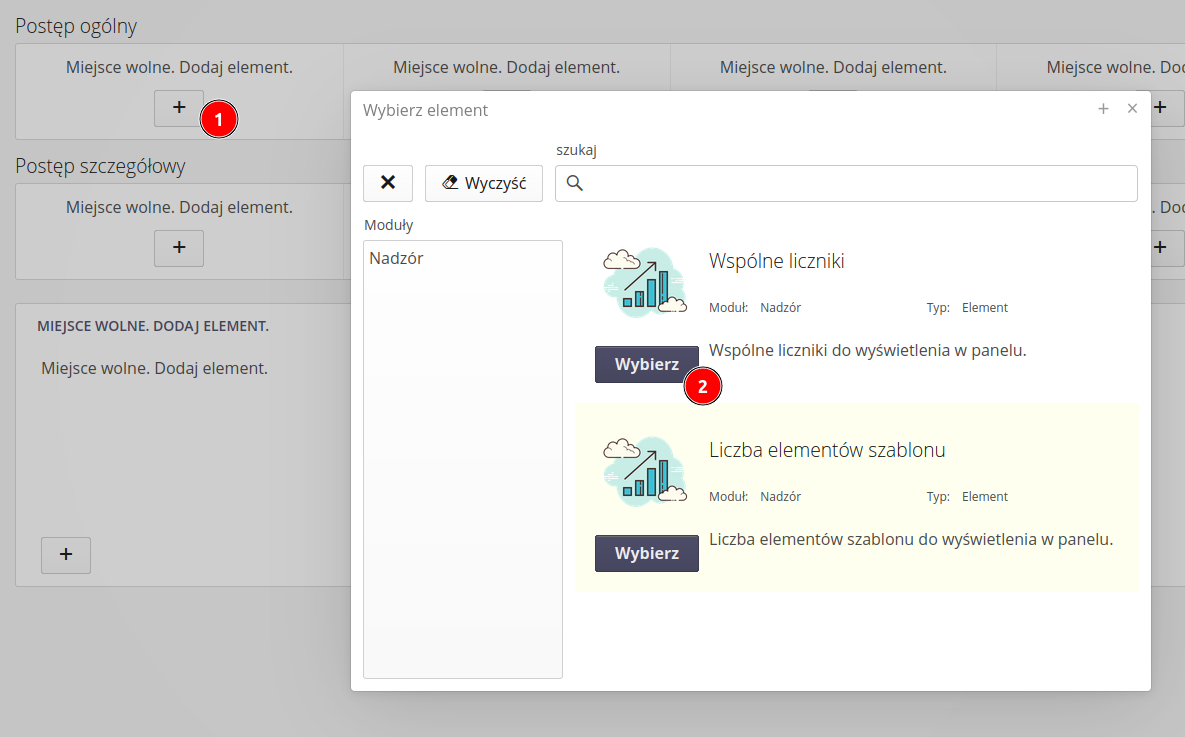

Figure 8. Adding an item from the selection list

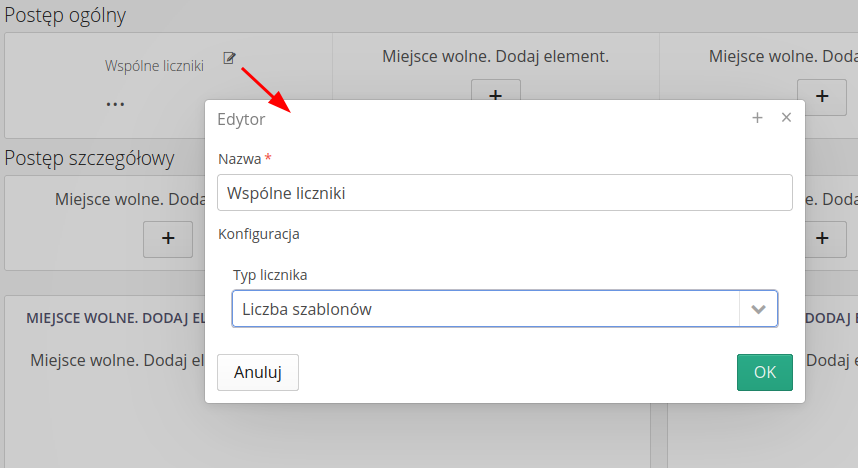

image 2024 05 24 18 30 48 961
Figure 9. Data item configuration
image 2024 05 24 18 31 56 938

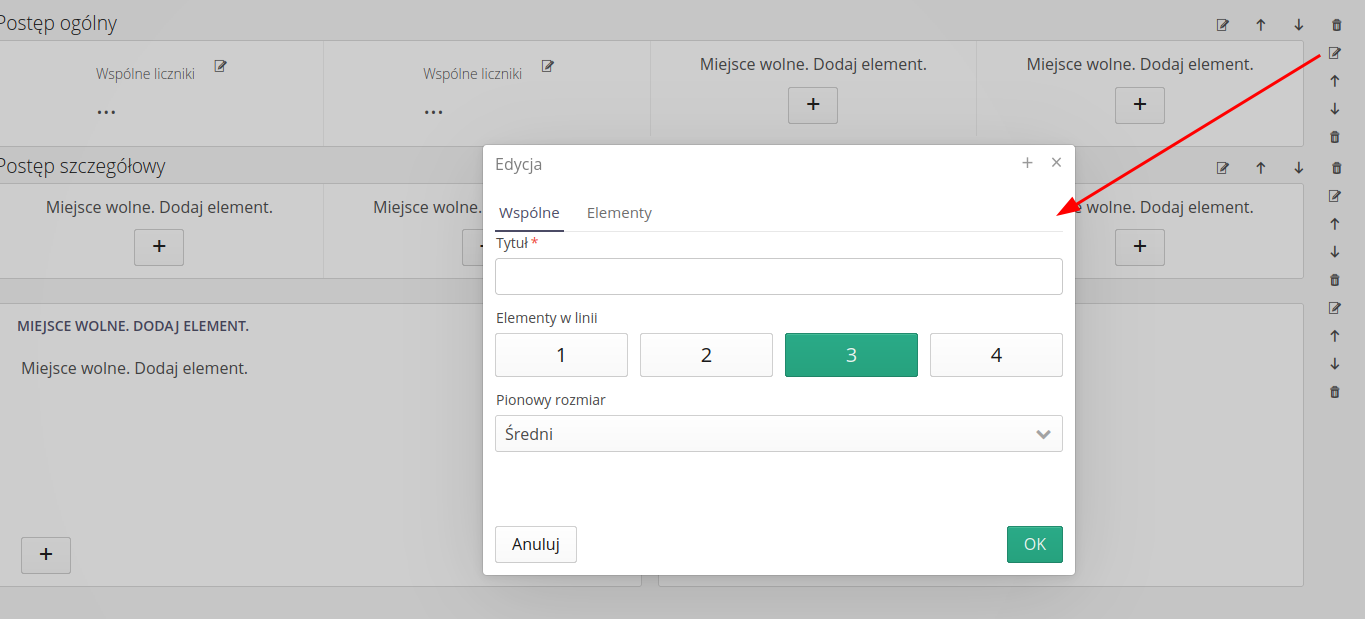

Figure 10. Selecting the number of elements in a line and line configuration

We save the entire configuration. We finish our work and can start viewing the dashboard and seeing how the data looks like. We save it with the Save button and then select the preview with the Preview button.

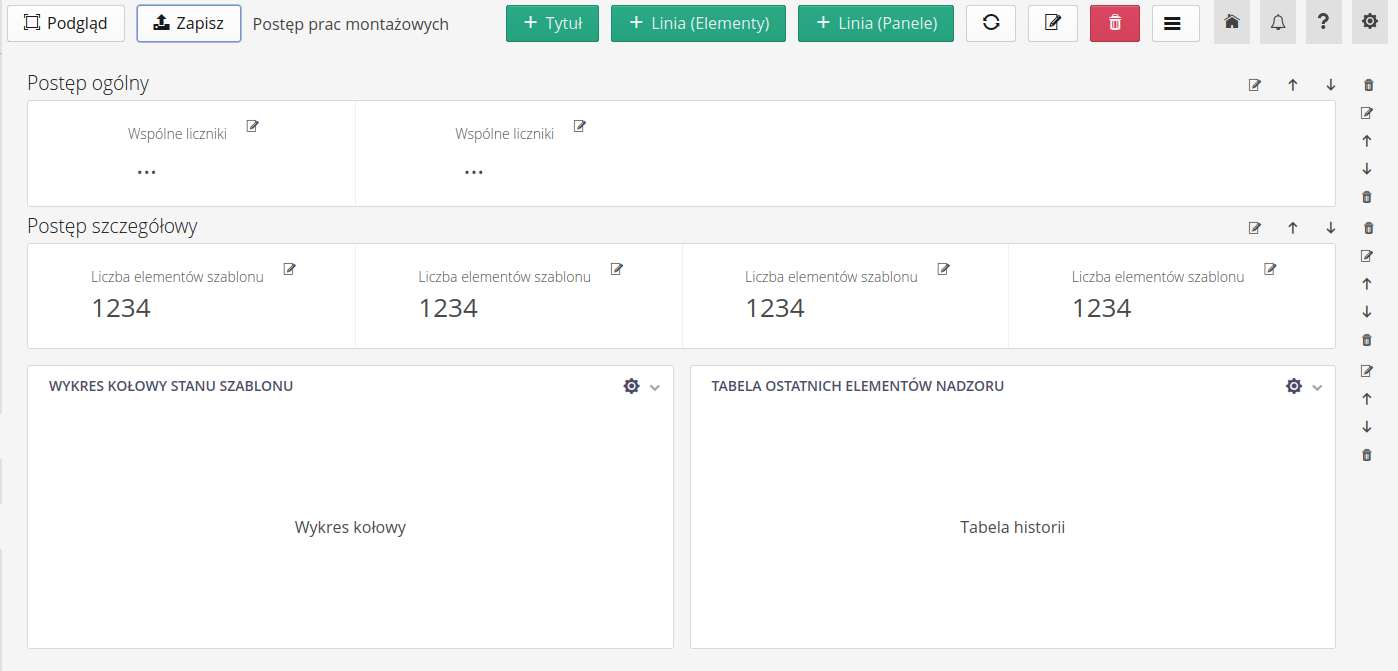

image 2024 05 24 18 34 06 236
Figure 11. The appearance of the designed dashboard in designer mode
image 2024 05 24 18 34 29 368

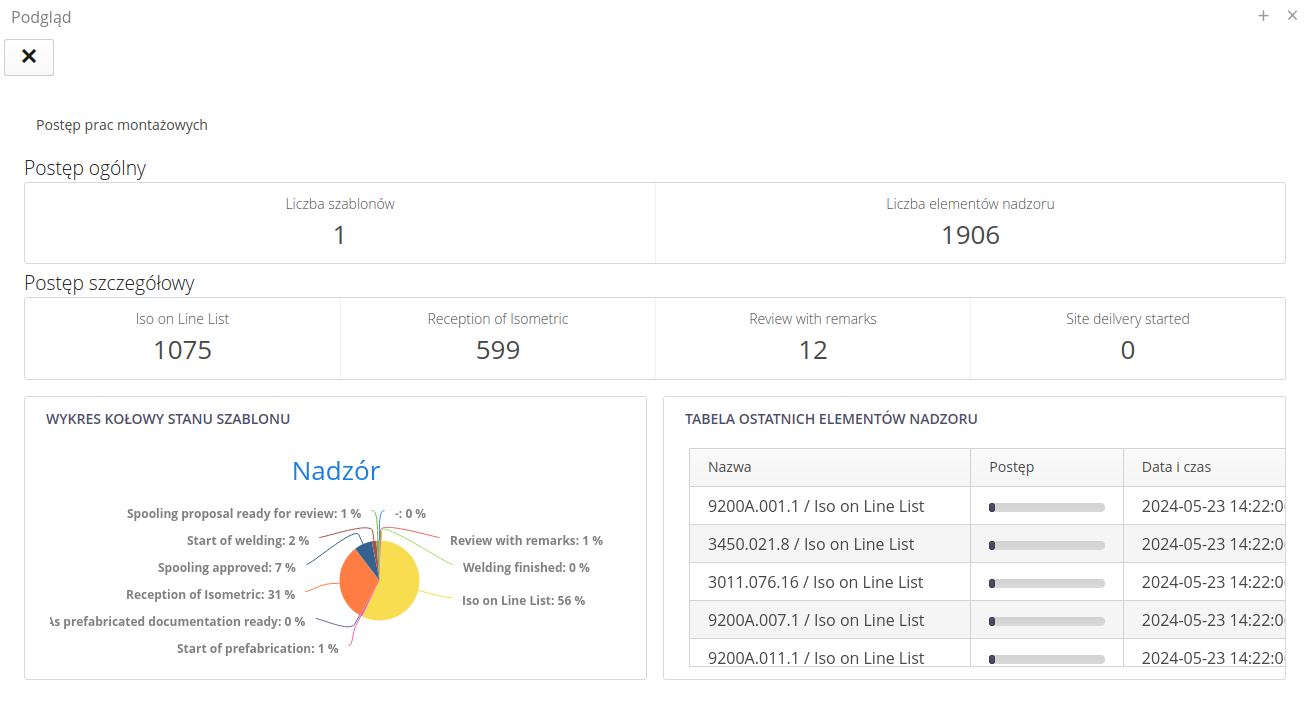

Figure 12. Dashboard in preview mode

If the data doesn’t look the way we want, we can go back to the designer and change the configuration. We can also add new elements, remove old ones, change their configuration, etc. Complete freedom. After saving the dashboard, it is also available to users in the appropriate system menu where we placed it. As you can see, the dashboards form a group and our dashboard together with the second designed one create a group of tabs after entering this view.

Summary

In this tutorial, we showed you how you can create your own dashboards in AMAGE. It all starts with creating a new dashboard and then designing it. In the project, we can use various elements that are available in the system. We can also create dashboard groups that allow displaying several dashboards in one view. We can also add groups to the main menu of the application to make it easier for users to access selected dashboards. It all depends on our needs and requirements.
